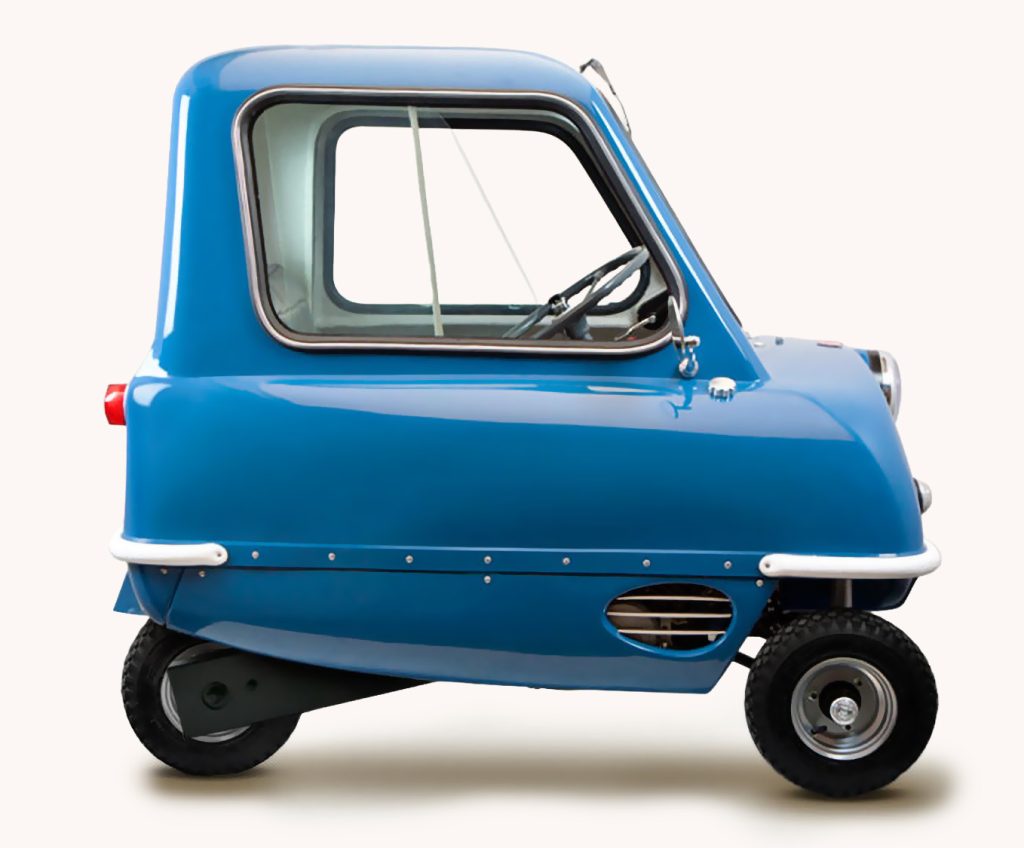

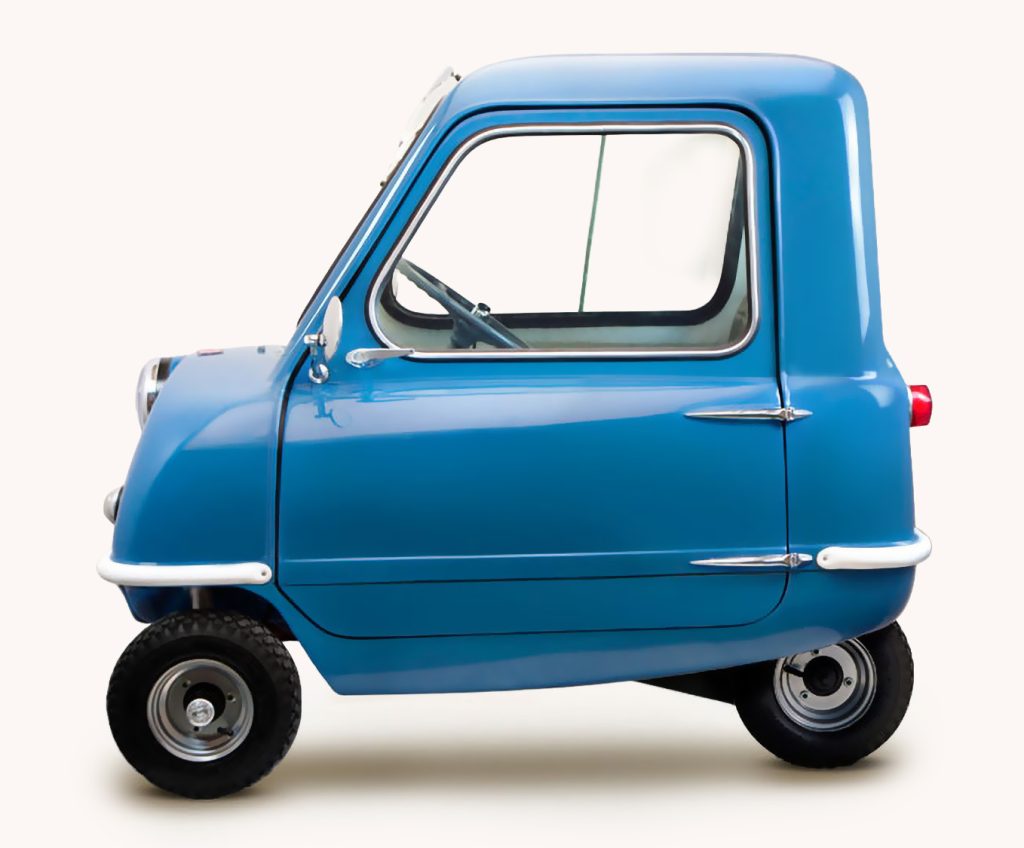

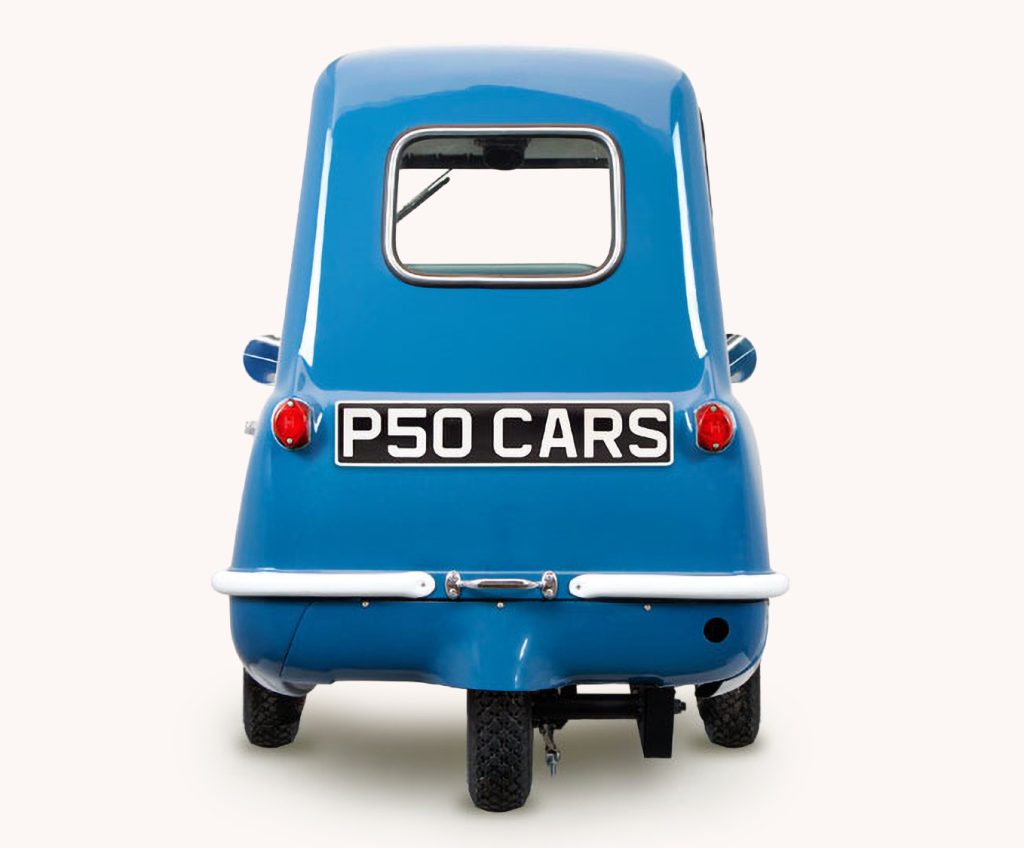

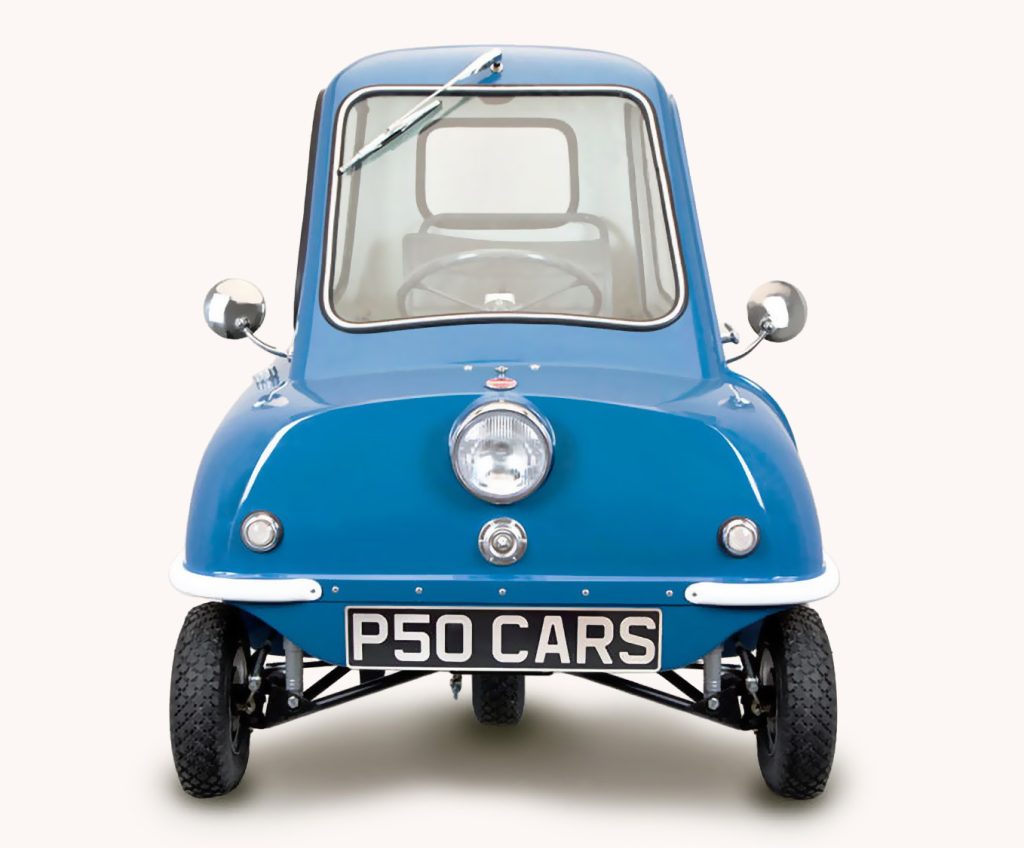

The Peel P50 specifications reveal why this tiny car became famous as the world’s smallest production car. Here are the dimensions, weight and technical details of the Peel P50 faithfully recreated by P50CARS.
P50 Dimensions
Overall length
1370 mm (54″)
Overall width
1040 mm (41″)
Overall height
1220 mm (48″)
Wheelbase
1200 mm (47″)
Track width
990 mm (39″)
Turning circle
3660 mm (12 ft)
Kerbweight
104 kg (230lbs)
Technical Overview
An overview of the P50’s primary systems and layout.
Body & Chassis
Lightweight composite monocoque body with integrated safety mounting points and steel subframe components.
Suspension
Fully independent suspension with custom coil-spring dampers for stability and ride comfort.
Braking
Foot-operated linked front and rear braking system with integrated parking brake.
Wheels & Tyres
Steel split-rim wheels with high-speed pneumatic tyres designed for everyday road use.
Drivetrain
Available with a modern electric drivetrain or a proven 4-stroke petrol engine, depending on specification.
Controls & Layout
Car-style driving position with pedal controls and simple, intuitive layout.
Speed Comparison
Original – 2-Stroke
38mph
Standard – 50cc Gas
30mph
Standard – Electric
30mph
Sports – 125cc Gas
48mph
Sports – Electric
50mph
Powertrain Options

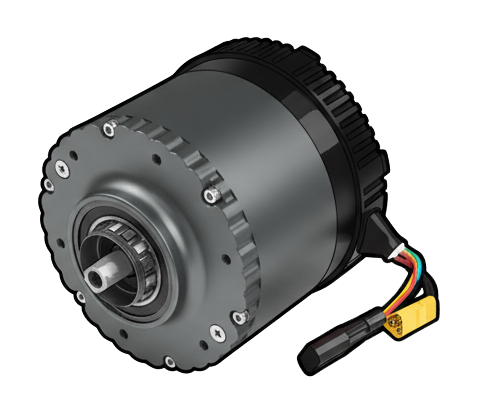

Electric 50
A smooth, quiet, and low-maintenance electric drivetrain offering simple “turn-on and go” operation, combining the charm of the original Peel P50 with the convenience of modern electric power.
DC brushless electric
Lithium type
50 mile (80 km) range
3 – 4 hour charge time
30 mph (45 kph) top speed

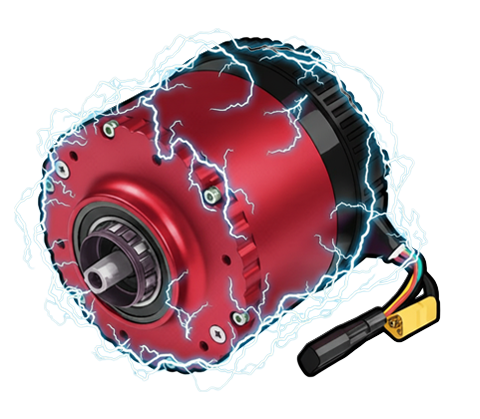

Electric Sport
A high-output electric drivetrain developed for increased power and performance, originally engineered to carry Eddie “The Beast” Hall, requiring a significant boost in torque and speed.
High output DC brushless motor
Lithium type
50 mile (80 km) range
3 – 4 hour charger time
50 mph (80 kph) top speed

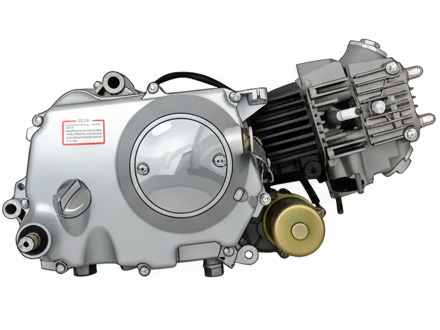

4-Stroke Gas
Our P50s have been designed to fit the popular Honda Cub-style 4-stroke engine, one of the most common engines in the world. It is reliable, easy to look after, and simple to upgrade.
Single-cylinder 4-stroke Cub Style
49cc – 125 cc capacity options
120 mpg ( 2.35 l/100 km )
1.5 gallon (5.7 litre) fuel tank
up to 48 mph (77 kph) top speed
Technical Features
Body and Chassis
Modern composite fibreglass monocoque body with built-in seat belt anchor points and integrated VIN number, with lightweight high-strength steel suspension and subframe components.
Transmission
Enclosed chain final drive for smooth and reliable power delivery.
Suspension
Fully independent suspension with custom-made coil spring shock units for improved ride comfort and stability.
Brake
Foot-operated front and rear linked braking system with rear parking brake for enhanced braking performance.
Wheels and Tires
Steel split-rim wheels designed for easy tyre changes, fitted with high-speed pneumatic tyres for everyday road use.
Lighting and Electrics
12V electrical system with horn, DOT and E-marked headlight, turn signals, tail lights with built-in brake and number plate light.
Electrical System (Gas models)
Integrated stainless steel fuel tank with built-in fuel level sender for easy monitoring.
Electric Drive System
48V DC brushless electric drive system with lithium battery compatibility, integrated motor controller, and home charging from a standard household outlet.
Controls and Layout
Standard car-style controls with accelerator and brake pedals, clutch on manual models, and a column-mounted gear selector.
