P50 Parts Diagram Lists : Steering Assembly

Using original Peel factory reference numbering where available, matched to the parts listed in this diagram..

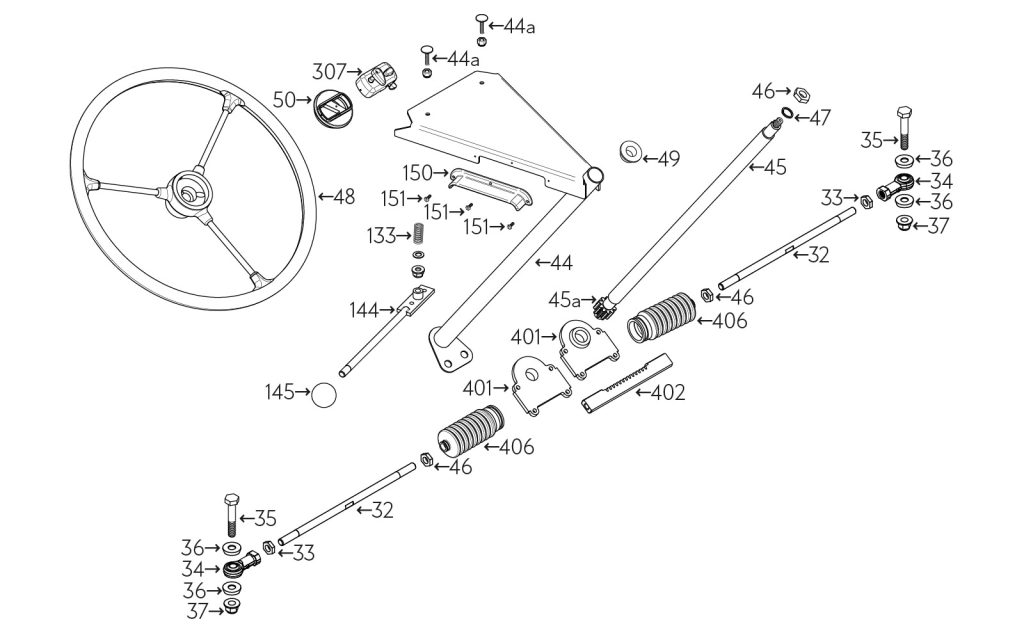

PEEL P50 Parts List Controls 01

31

Track Rod LH

D50/31

32

Track Rod RH

D50/32

33

Track Rod Lock Nut

D50/33

34

Ball Joint

D50/34

35

Ball Joint Bolt

D50/35

37

Ball Joint Nut

D50/37

44

Steering Column Outer

D50/44

44a

Steering Column Bolt

D50/44a

45

Steering Column Shaft w. Pinion

D50/45

45a

Steering Pinion (Part of 45)

D50/45a

46

Steering Column Top Nut

D50/46

47

Steering Column Lock Washer

D50/47

48

Steering Wheel

D50/48

49

Steering Column Bush

D50/49

50

Steering Wheel Centre (Switch Mount)

D50/50

133

Coil Spring

D50/133

134

Plain Washer

D50/134

144

Gear Lever

D50/144

145

Gear Lever Knob

D50/145

151

Gear Lever Cover Screws

D50/151

401

Steering Box Half Casing

D50/37

402

Steering Rack

D50/39

403

Plate Washers for Steering Box

D50/403

406

Suspension Unit Top Bracket

D50/42
