P50 Parts Diagram Lists : Rear Axle Assembly

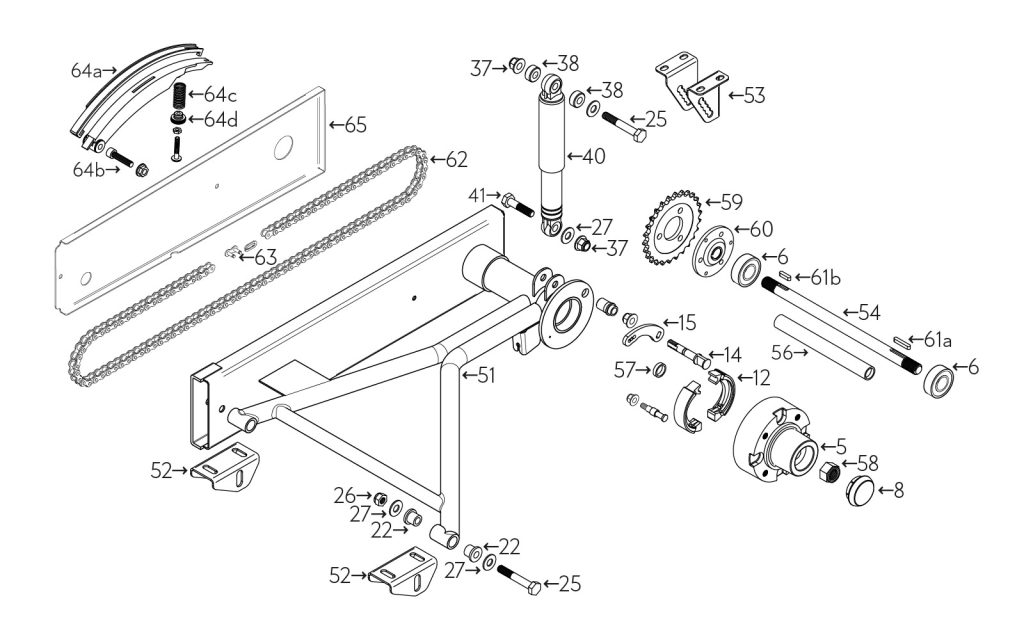

Using original Peel factory reference numbering where available, matched to the parts listed in this diagram..

PEEL P50 Parts List Controls 01

12

Brake Shoes (Pair)

D50/12

13

Brake Shoe Springs (Pair)

D50/13

14

Brake Camshaft (Nut + Washer)

D50/14

15

Brake Lever

D50/15

22

Suspension Bush

D50/22

6

Rear Axle Bearing

D50/6

5

Hub (Brake Drum)

D50/5

54

Rear Axle

D50/54

55

*

D50/55

56

Rear Axle Centre Spacer

D50/56

57

Rear Hub Spacer

D50/57

59

Sprocket

D50/59

60

Sprocket Adapter

D50/60

61a

Rear Hub Keyway

D50/61a

61b

Sprocket Adapter Keyway

D50/61b

62

Drive Chain

D50/62

63

Split Link

D50/63

64

Chain Tensioner

D50/64

64a

Chain Tensioner Nylon Rubbing Strip

D50/64a

64b

Chain Tensioner Bolt

D50/64b

64c

Chain Tensioner Spring

D50/64c

64d

Chain Tensioner Adjuster

D50/64d

65

Chaincase Cover

D50/65

67

Chaincase Cover Spacer

D50/67
