P50 Parts Diagram Lists : P50 Windows, Seals & Frames

Using original Peel factory reference numbering where available, matched to the parts listed in this diagram..

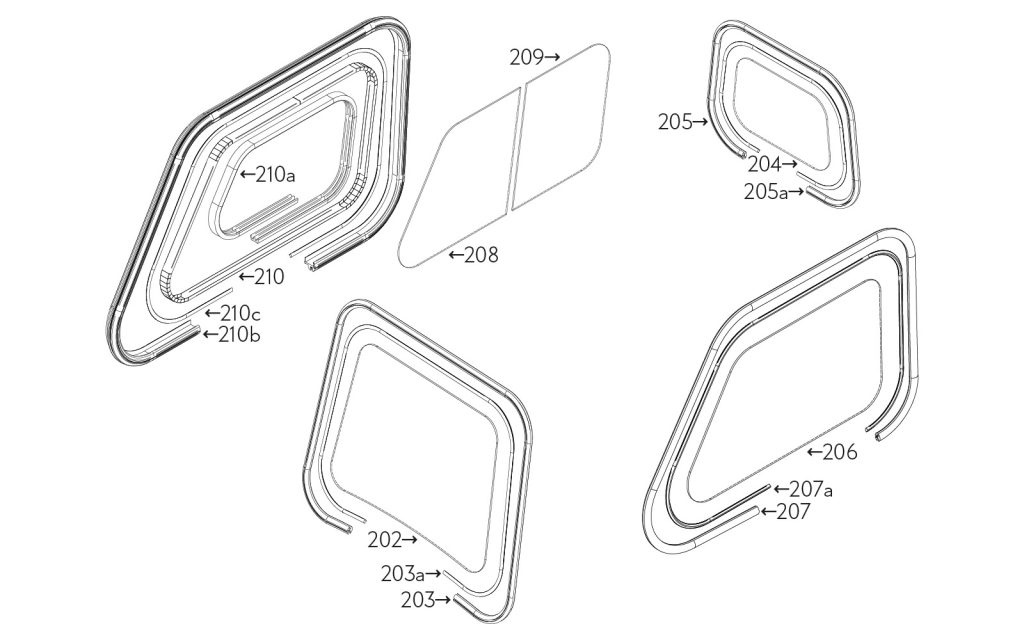

PEEL P50 Parts List Controls 01

202

Windscreen Laminated (DOT & E-Marked)

D50/202

203

Windscreen Rubber Seal

D50/203

203a

Windscreen Chrome Locking Strip

D50/203a

204

Rear Window

D50/204

205

Rear Window Rubber Seal

D50/205

205a

Rear Window Chrome Locking Strip

D50/205a

207

Door Window Rubber Seal

D50/207

207

Door Window Chrome Locking Strip

D50/207a

208

RHS Sliding Window – Front Pane

D50/208

209

RHS Sliding Window – Rear Pane

D50/209

210

RHS Sliding Window Assembly

D50/210

210a

RHS Sliding Window Metal Channel/Frame

D50/210a

210b

RHS Sliding Window Rubber Seal

D50/210b

210c

RHS Sliding Window Flocked Channel Liner

D50/210c

210d

RHS Sliding Window Chrome Locking Strip

D50/210d
