P50 Parts Diagram Lists : Front Axle Assembly

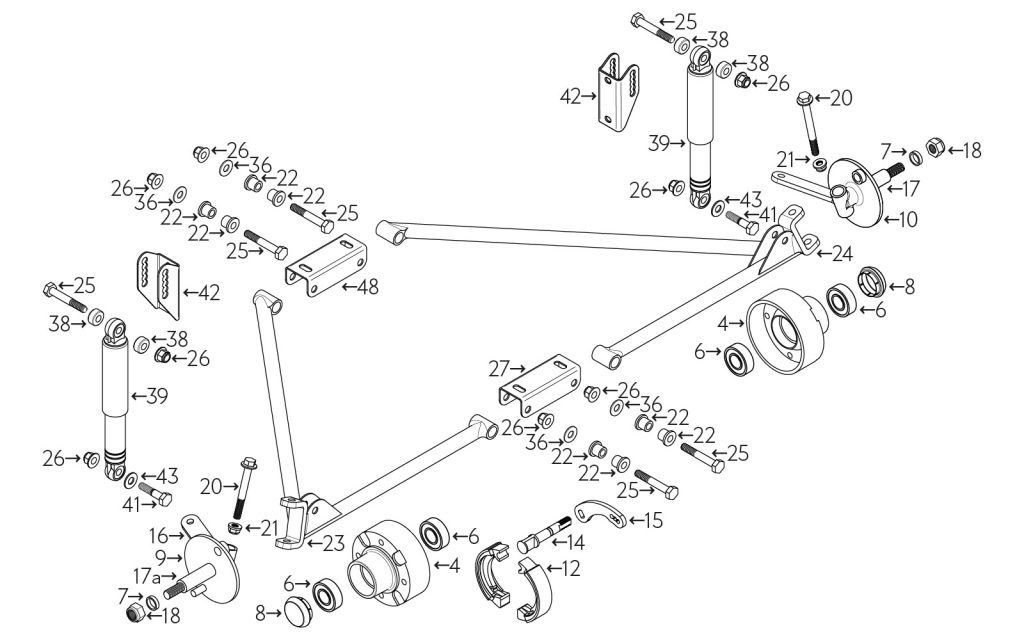

Using original Peel factory reference numbering where available, matched to the parts listed in this diagram..

PEEL P50 Parts List Controls 01

4

Front Hub

D50/4


6

Hub Bearing

D50/6


7

Hub Spacer

D50/7


8

Hub Cap

D50/8


9

Brake Backplate RH

D50/9


10

Brake Backplate LH

D50/10


12

Brake Shoes (Pair)

D50/12


13

Brake Shoe Springs (Pair)

D50/13


14

Brake Camshaft (Nut + Washer)

D50/14


15

Brake Lever

D50/15


16

Stub Axle RH Assembly

D50/16


17

Stub Axle LH Assembly

D50/17


17a

Stub Axle (only)

D50/17a


18

Stub Axle Nut

D50/18


19

Spacing Washer

D50/19


20

King Pin

D50/20


21

King Pin Locknut

D50/21


22

Suspension Bush

D50/22


23

Half Axle RH Less Bushes

D50/23


24

Half Axle LH Less Bushes

D50/24


25

Pivot Bolt

D50/25


26

Pivot Bolt Lock Nuts

D50/26


27

Half Axle Front Mounting

D50/27


28

Half Axle Rear Mounting

D50/28


29

Half Axle Mounting Bolts

D50/29


30

Half Axle Mounting Bolts

D50/30


37

Suspension Unit Washer

D50/37


39

Suspension Unit (Front)

D50/39


41

Lower Suspension Unit Bolt

D50/41


42

Suspension Unit Top Bracket

D50/42


43

Washers for Same

D50/43
