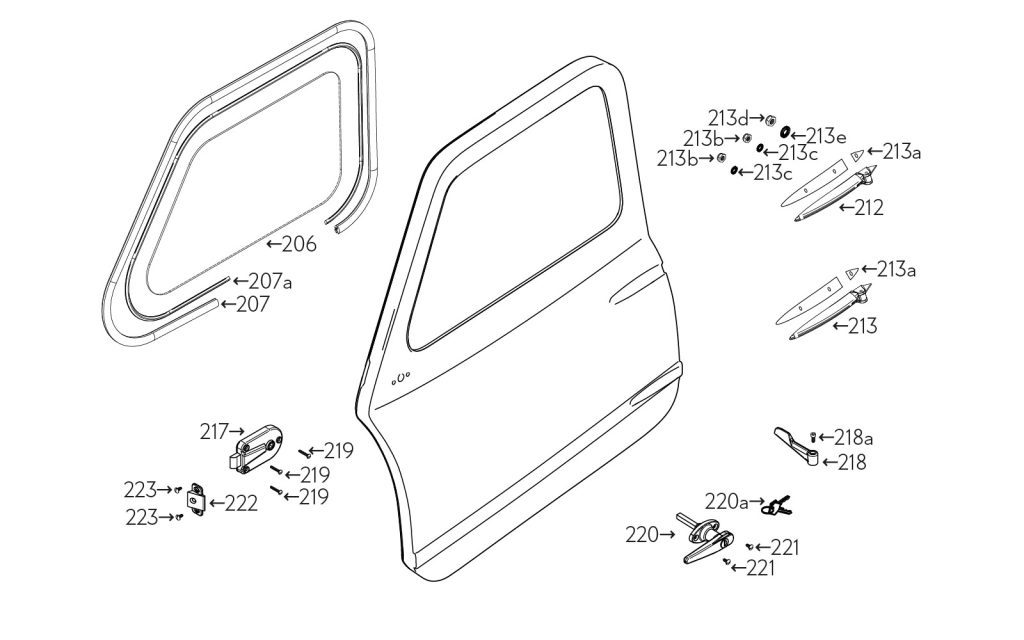

P50 Parts Diagram Lists : Door Assembly

Using original Peel factory reference numbering where available, matched to the parts listed in this diagram..

PEEL P50 Parts List Controls 01

206

Door Window

D500206

207

Door Window Rubber Seal

D500207

207a

Door Window Chrome Locking Strip

D500207a

211

Door Moulding

D500211

212

Upper Door Hinge

D500212

213

Lower Door Hinge

D500213

213a

Door Hinge Gaskets

D500213a

213b

Door Hinge Nut (Small)

D500213b

213c

Door Hinge Lock Washer Pair (Small)

D500213c

213d

Door Hinge Nut (Large)

D500213d

213e

Door Hinge Lock Washer Pair (Large)

D500213e

217

Door Lock

D500217

218

Interior Door Handle

D500218

219

Door Lock Fixing Screws

D500219

220

Exterior Door Handle

D500220

220a

Door Handle Lock Key

D500220a

221

Exterior Door Handle Fixing Screws

D500221

222

Door Striker Plate

D500222

223

Door Strike Plate Fixing Screws

D500223

227

Door Draught Excluder

D500227

229

Door Check Strap

D500229

229a

Door Check Strap Fixing Clip

D500214a
